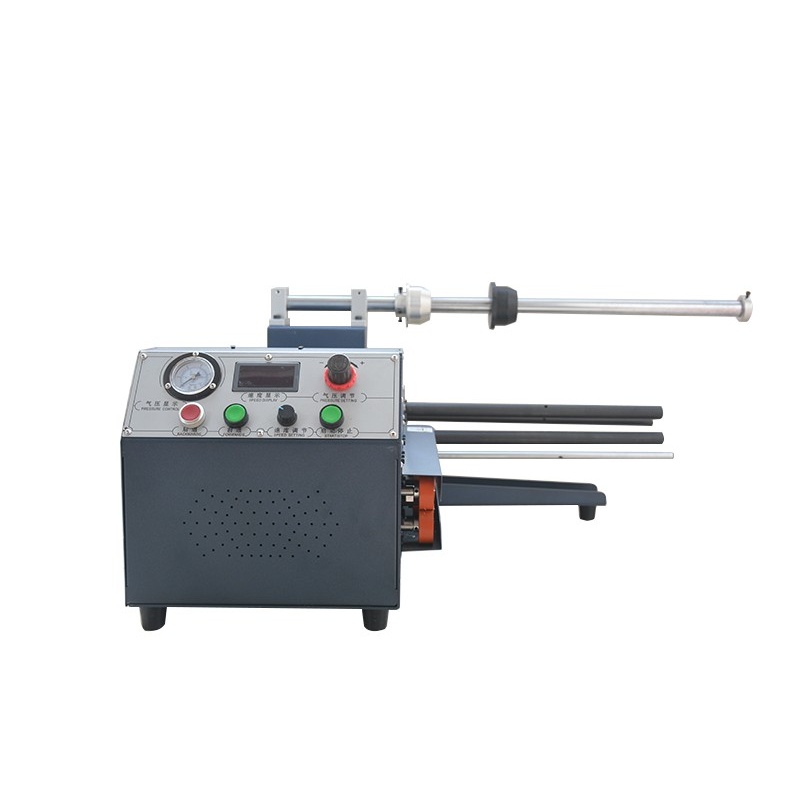

Air Column Machine/Q020 Air Column Bag Machine

  • Green environmental protection
  • Efficient buffer
  • Intimate caress
  • Customized Logo
1. Fast inflating speed, easy operation, save time and labor cost
2. Air column bags of different specifications can be manufactured, except Q bags
3. The data such as speed and pressure can be adjusted at will to make the inflation process more spontaneous


Physical specifications


  1. Fast inflating speed, easy operation, save time and labor cost
  2. Air column bags of different specifications can be manufactured, except Q bags
  3. The data such as speed and pressure can be adjusted at will to make the inflation process more spontaneous


product parameters

Model Power Voltage Working speed Speed range Air volume range Material axis diameter Air channel size Outline dimension Weight of machine Type of rolls and bags
P(W) V(V) S(m/min) grade grade D(mm) C(mm) (L*W*H)mm W(kg)
Q020 300 110-220 20 0-100 0-90psi/
0-6kg/cm²
76 20 720*480*450 47 air column film rolls/
L bag/ U bag
Q021 300 110-220 20 0-100 0-90psi/
0-6kg/cm²
76 20 810*810*410 56 air column film rolls/
L bag/ U bag /Q bag

Advantages of air cushion machine

1 Perfect sealing

The sealing edge is complete and not easy to fold and air leakage, high-speed air flow will not affect the sealing of plastic film.

2 Full air filling

Professional air filling process, air filling rate can reach 95%,high-speed and strong air flow will support.

3 Stable and Reliable

The defect rate is less than 0.1%. can work contunouly more than 48 hours. and easy to change spare parts.

4 Fast and Multifunction

Machine running speed is 28m/minutes, air filling speed belongs to the leading of industry level.

Supporting products
